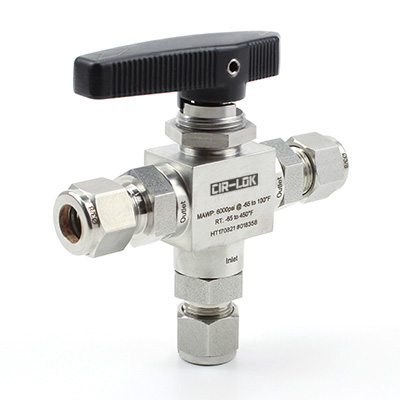

BV1-M16-P10-3-316
BV1-M16-P10-3-316
| Atribut | Ball Valves |
| Bahan Badan | 316 Baja Tahan Karat |
| Sambungan 1 Ukuran | 16 mm |
| Sambungan 1 Tipe | CIR-LOK® Tube Fitting |
| Sambungan 2 Ukuran | 16 mm |
| Sambungan 2 Tipe | CIR-LOK® Tube Fitting |
| Sambungan 3 Ukuran | 16 mm |
| Sambungan 3 Tipe | CIR-LOK® Tube Fitting |
| Material Kursi | PTFE |
| CV Maksimal | 4.6 |
| Orifice | 0,406 ing. / 10,3 mm |
| Warna Handle | ireng |
| Pola Aliran | 3-Carane |
| Rating Suhu | -65 ℉ nganti 450 ℉ (-54 ℃ nganti 232 ℃) |
| Rating Tekanan Kerja | Max 6000 PSIG (413 bar) |
| Testing | Tes Tekanan Gas |
| Proses reresik | Reresik lan Pengemasan Standar (CP-01) |
