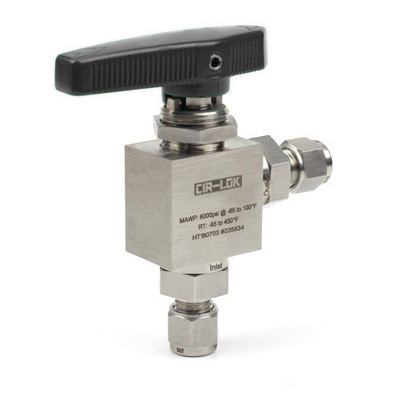

BV1-F12-P10-A1-316
BV1-F12-P10-A1-316
| Attribute | Ball Valves |
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 3/4 in. |
| Connection 1 Type | CIR-LOK® Tube Fitting |
| Connection 2 Size | 3/4 in. |
| Connection 2 Type | CIR-LOK® Tube Fitting |
| Seat Material | PEEK |
| CV Maximum | 3.8 |
| Orifice | 0.406 in. /10.3 mm |
| Handle Color | Black |
| Flow Pattern |
2-Way, Angle |
| Temperature Rating | -65℉ to 450℉ (-54℃ to 232℃) |
| Working Pressure Rating | Max 6000 PSIG (413 bar) |
| Testing | Gas Pressure Test |
| Cleaning Process | Standard Cleaning and Packaging (CP-01) |
