| Attribute |

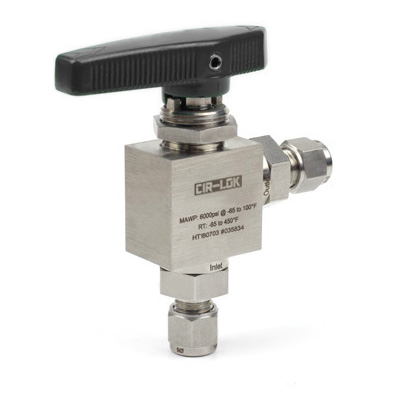

Ball Valves |
| Body Material |
316 Stainless Steel |
| Connection 1 Size |
10 mm |
| Connection 1 Type |
CIR-LOK® Tube Fitting |
| Connection 2 Size |
10 mm |
| Connection 2 Type |
CIR-LOK® Tube Fitting |
| Seat Material |
PTFE |
| CV Maximum |
2 |
| Orifice |
0.25 in. /6.4 mm |
| Handle Color |
Black |
| Flow Pattern |
2-Way, Angle |
| Temperature Rating |
-65℉ to 450℉ (-54℃ to 232℃) |
| Working Pressure Rating |
Max 6000 PSIG (413 bar) |
| Testing |
Gas Pressure Test |
| Cleaning Process |
Standard Cleaning and Packaging (CP-01) |
