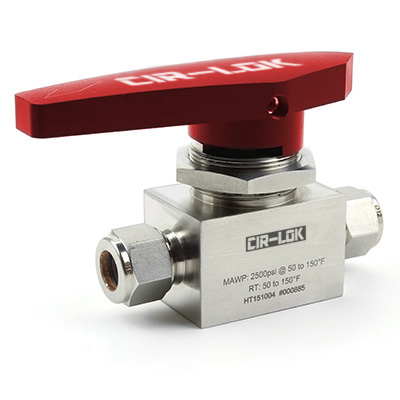

BV2-M8-T05-R1-316
BV2-M8-T05-R1-316
| Attribute | Ball Valves |
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 8 mm |
| Connection 1 Type | CIR-LOK® Tube Fitting |
| Connection 2 Size | 8 mm |
| Connection 2 Type | CIR-LOK® Tube Fitting |
| Seat Material | PTFE |
| CV Maximum | 1.5 |
| Orifice | 0.187 in. /4.8 mm |
| Handle Color | Red |
| Flow Pattern | 2-Way, Straight |
| Temperature Rating | -65℉ to 300℉ (-54℃ to 148℃) |
| Working Pressure Rating | Max 3000 PSIG (206 bar) |
| Testing | Gas Pressure Test |
| Cleaning Process | Standard Cleaning and Packaging (CP-01) |
